Aprilia Tuono V4R

The Aprilia Tuono V4R is an evil looking high-performance sports bike which is basically the unfaired version of the Aprilia RSV4 R.




The Aprilia Tuono V4R boasts power never before installed on a factory naked bike, obtained by reconfiguring the RSV4 Factory APRC SE four V cylinder. The Tuono V4R uses features from the Special Edition including the new exhaust system with bypass valve, which is two kilos lighter than the system used on the RSV4 R, and latest generation Ride by Wire throttle control. Differences from its race track sibling are closer spacing between the first three gear ratios, and a maximum torque output of 110 Nm on tap 1,000 rpm lower. The Aprilia Tuono V4R features the same tail fairing, saddle, tank and side panels as Aprilia's WSBK racing machine.



The Tuono V4R uses the second generation version of Aprilia's APRC (Aprilia Performance Ride Control) joystick - an electronic dynamics control package developed by Aprilia to get as close as possible to the physical limits of riding. APRC is based on an automotive inertia sensor platform, with two gyrometers and two accelerometers allowing the ECU to determine the dynamic state of the motorcycle and control engine torque accordingly to help the rider exploit the full performance potential of the bike in all conditions.



The APRC package of the Tuono V4R includes ATC traction control (Aprilia Traction Control), with eight selectable levels, which controls sliding when accelerating out of a curve in relation to bank angle and throttle aperture, AWC (Aprilia Wheelie Control), which helps the rider control extreme wheelying by gradually bringing the front wheel back to the ground, and AQS (Aprilia Quick Shift), which allows instantaneous upshifts without closing the throttle or using the clutch. Completing the suite of four functions is the most exhilarating of all: ALC (Aprilia Launch Control).



The Aprilia Tuono V4R also features a range of top-spec chassis components, including a Brembo brake system with radial callipers and 320 mm floating discs at the front (220 mm at the rear), aluminium wheels with an all-new design weighing 2 Kg less than those on the RSV4R, Sachs upside down front fork with 43 mm stanchions coated with titanium nitride for reduced friction, and Sachs shock absorber with separate piggy back nitrogen canister featuring adjustable spring preload, compression and rebound damping and length, to modify the setup of the bike to suit different riding styles or for when carrying a pillion.

Aprilia Tuono V4R Features:

Year
2011

Engine
Liquid cooled, four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder

Capacity
998,9
Bore x Stroke 78 x 52,3 mm
Compression Ratio 13.0:1

Induction
Airbox with front dynamic air intakes.
4 Weber-Marelli 48-mm throttle bodies with 4 injectors
and latest generation Ride-by-Wire engine
management.
Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)

Ignition / Starting
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and "stick-coil" type coils Electric. / electric
Exhaust 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine management system controlled butterfly valve and integrated trivalent catalytic converter (already meets future Euro4 regulations)
Clutch Multiplate wet clutch with mechanical slipper system

Max Power
162 hp 119 kW @ 11000 rpm

Max Torque
110 Nm @ 9000 rpm

Transmission / Drive
6 Speed / chain
Gear Ratio 1st: 39/15 (2.600) 2nd: 33/16 (2.063) 3rd: 34/20 (1.700) 4th: 32/22 (1,455) 5th: 34/26 (1,308) 6th: 33/27 (1,222)
Steering angle / Trail 24.5° / 105 mm
Frame Aluminium dual beam chassis with pressed and cast
sheet elements. Sachs steering damper.

Front Suspension
Sachs upside down front fork with 0 43 mm stanchions. Low profile forged aluminium calliper mountings for radial callipers. Completely adjustable spring preload and hydraulic compression and rebound damping. 120mm wheel travel.

Rear Suspension
Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage. 130mm wheel travel.

Front Brakes
2x 320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 0 horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.

Rear Brakes
Single 220-mm diameter disc; Brembo floating calliper with two 032 mm isolated pistons. Pump with integrated tank and metal braided hose

Front Tyre
120/70 ZR17

Rear Tyre
190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55
ZR 17)
Seat Height 840 mm

Cerb-Weight
179 kg

Fuel Capacity (res)
17 litres (4-litre reserve included)

More about → Aprilia Tuono V4R

BMW K1600GT

Ever since BMW Motorrad presented the concept study Concept 6 in autumn 2009, the new 6-cylinder in-line engine installed in it has caught the imagination of many motorcycle fans. For over seven decades now, 6-cylinder in-line engines have stood for fascinating engine technology in automobiles at BMW more than with any other brand. With the new K 1600 GT and K 1600 GTL, BMW motorcycles are now available for the first time with a 6-cylinder in-line power unit developed in-house. The two touring motorcycles have a supreme, impressive and equally distinctive appearance, creating a desire to travel at first sight.


Riding dynamics, long-distance suitability and comfort.

For decades, 6-cylinder in-line engines have exercised a special fascination. In addition to their perfect running smoothness they also offer supreme output and torque, giving the rider powerful emotional impressions.
In addition to safety, equipment and comfort, prestige and dynamic performance are the key criteria for a supreme touring bike. With the most compact in-line 6-cylinder engine in serial motorcycle production to date, the K 1600 GT and the K 1600 GTL penetrate a whole new dimension in terms of riding properties, long-distance suitability and comfort. They combine maximum agility and riding dynamics with a luxurious overall package. With an engine output of 118 kW (160 bhp) and a maximum torque of 175 Newton metres, their 6-cylinder engine provides superb propulsion in all conditions.

Lightest and most compact serial production 6-cylinder in-line engine in a motorcycle > 1000 cc.

Previously, the in-line arrangement of six cylinders resulted in either very long or very wide constructions, depending on the installation position, which led to drawbacks in terms of chassis geometry, weight distribution and centre of gravity. This where the K 1600 GT and K 1600 GTL break new ground.

Weighing 102.6 kilograms, the engine is by far the lightest serially produced 6-cylinder in-line engine for motorcycles in the class > 1000 cc. What is more, the engine is significantly narrower in construction width than all other 6-cylinder in-line motorcycles in serial production to date. This extremely compact construction and reduced width was achieved in particular by means of a cylinder bore of 72 millimetres in conjunction with a spacing of just 5 millimetres between the cylinder the cylinder sleeves.



Both the low engine weight and the consistent lightweight construction of the vehicle as a whole contribute to the low weight of the vehicle. At 319 kg (K 1600 GT without panniers) and 348 kg (K 1600 GTL with panniers and topcase) the new touring bikes are in the lower range of the segment.

Three modes to choose from and DTC (Dynamic Traction Control) for maximum safety when accelerating.

The rider of the K 1600 models has three different engine characteristics directly available at the press of a button at the right-hand end of the handlebars so as to be able to adapt to different uses such as touring on the road, riding on wet surfaces and sporty, dynamic motorcycling - the modes "Rain", "Road" and "Dynamic". Available as an option ex works, the traction control function DTC is combined individually with the different modes, fully harmonised with them so as to provide maximum riding safety.


The control of the central throttle valve with a diameter of 52 millimetres is effected via an e-gas, also known as a ride-by-wire system. The rider's wishes are registered by means of a sensor in the accelerator twist grip. The engine control then adjusts the position of the throttle valve accordingly.

Chassis with ideal mass concentration for dynamic riding properties.



The essential chassis elements of the BMW K 1600 GT and K 1600 GTL are the light alloy bridge-type frame, and the Duolever and Paralever for wheel control at front and rear. Because of the special requirements of a touring bike with a 6-cylinder engine, particular attention was paid to balancing the masses.

All in all, the interplay of chassis and engine position, together with the seating position of the rider, not only makes for a low overall centre of gravity with a very favourable concentration of masses, it also provides an ideally balanced wheel load distribution for excellent riding properties. The combination of ride stability, riding dynamics and lightness of handling in all riding and load conditions sets a new benchmark in the touring bike segment.

Electronic Suspension Adjustment ESA II for optimum adaptation to all uses and load states.

The new 6-cylinder touring bikes also benefit from the innovative Electronic Suspension Adjustment II (ESA II), which is offered as a special equipment feature ex works.

With this system, globally unique on the motorcycle market, the rider can conveniently press a button to electronically adapt not only the rebound damping properties of the front and rear spring strut but also the spring rest ("spring preload") of the rear spring strut as well as the latter's spring rate and therefore the "hardness" of the suspension. This makes for outstanding stability and impressive responsiveness in all load states.



The additional adaptation of the spring rate allows the damping settings "Sport, Normal, Comfort" to be spread widely in ESA II, giving them clearly perceptible characteristics during riding. So in "Sport" mode, the K 1600 GT and K 1600 GTL are even more dynamic and precise and in "Comfort" mode they are more comfortable - while still retaining excellent stability.

Adaptive headlight - a world first for increased safety at night.

With the new BMW Motorrad touring bikes, the first ever "Adaptive Headlight" option is available ex works in the motorcycle sector as a supplement to the standard xenon headlamp. In addition to standard pitch compensation, the light of the main headlamp is also balanced in relation to banking angle. This produces significantly improved illumination of the road when cornering and therefore an enormous increase in active riding safety.

Integrated operating concept with Multi-Controller, TFT colour screen and menu guidance.

The instrument panel of the K 1600 models comprises two classic circular instruments for the speedometer and tachometer and a 5.7-inch TFT colour display. The design of the information display is also completely new in the motorcycle field. Among other things, it enables the attractive presentation of text and graphics over several lines.

Another world first is the Multi-Controller as part of an integrated operating concept, first introduced in the BMW R 1200 RT at the end of 2009. In addition to audio system control, the K 1600 models also have a menu for operating the comfort functions and on-board computer.



Innovative design with outstanding wind and weather protection.

Particular attention was paid during development to the combination of innovative design, optimum wind and weather protection and the very highest level of functionality. A very good example of this is the electrically adjustable windshield with memory function.

The bike's aerodynamic qualities in terms of reduced air swirl - especially in the pillion passenger area - were developed in sophisticated wind tunnel tests. But the windshield not only protects the rider and pillion passenger: it automatically returns to the starting position when the ignition is switched off, acting as an anti-theft system for the optionally available navigation system.


BMW K 1600 GT with active riding ergonomics for proactive touring.

The design of the ergonomic triangle from the position of the footrests, seat top and handlebars makes for a highly proactive seating position in the K 1600 GT, while still retaining a high level of long-distance comfort. The rider and pillion passenger enjoy a comfortable knee angle but the seating position is geared towards the front wheel for a dynamic riding style. The seat is height-adjustable in the rider area so that it can be adapted to individual needs.

The K 1600 GT is has a very extensive range of standard features ex works consisting of xenon headlamps, heated grips and seat, cruise control and on-board computer. In conjunction with the supreme riding qualities of the new BMW Motorrad 6-cylinder engine, this motorcycle leaves nothing to be desired as far as the proactive touring rider is concerned.

BMW K 1600 GTL with very comfortable, relaxed ergonomics set-up for long trips with pillion passenger.

The luxurious touring bike BMW K 1600 GTL meets the very highest demands. Rider and pillion passenger benefit from the very relaxed, upright seating position as is especially appreciated over long distances. The ergonomic design is geared towards maximum comfort and derives from a single-section, dual level seat in conjunction with rider footrests which are further forward and lower, as well as handlebars which reach further backwards. The standard topcase rounds off the range of comfort features for the pillion passenger.

Like the K 1600 GT, the K 1600 GTL has a very extensive range of standard features consisting of xenon headlamps, heated grips and seat, cruise control and on-board computer. The overall impression of the fascinating 6-cylinder motorcycle in combination with a carefully conceived storage concept, a standard audio system and numerous design elements make the BMW K 1600 GTL the flagship model among the BMW Motorrad touring bikes.

Individual paint finish concepts adapted to the character of each bike.

As touring bikes, the new BMW K 1600 GT and K 1600 GTL stand for a perfect synthesis of supremacy, dynamic performance and comfort. This is also reflected in the colouring of the two models.

In the K 1600 GT, the body colours of Light Grey metallic and Vermilion Red metallic create a fascinating contrast with the frame and wheels in Ostra Grey and the engine in Platinum metallic matt. The colouring especially highlights the bike's technical components. The lines are concentrated and give the motorcycle a marked sense of agility.

With its emphasis on comfort and equipment, the K 1600 GTL has a powerful presence and elegance with elongated lines. This was achieved by means of a harmonious interaction between body colours and the colouring of the engine and chassis components. Here, Mineral Silver metallic or Royal Blue metallic 2 provide a perfect match for the Magnesium metallic matt of the painted frame and wheels. The engine in Platinum metallic matt ensures an appealing overall impression.

BMW K 1600 GT Features:

Year
2011

Engine
Liquid cooled, four stroke, transverse six cylinder, 4 valves per cylinder

Capacity
1649
Bore x Stroke 72 x 67.5 mm
Compression Ratio / Fuel 12.2:1 / premium unleaded (95 RON)

Induction
52mm Throttle valve diameter, BMS-X

Ignition / Starting
- / electric
Clutch Multiplate wet clutch, hydraulically activated

Max Power
118 KW 160.5 hp @ 7750 rpm

Max Torque
175 Nm @ 5250 rpm

Transmission / Drive
6 Speed / shaft
Gear Ratio 1st 2.23 2nd 1.641 3rd 1.319 4th 1.101 5th 0.926 6th 0.788
Frame

Main frame: chill-cast rear frame: aluminium, extruded sections

Front Suspension
Dual longitudinal control arm 115mm wheel travel.

Rear Suspension
Paralever (single-sided swing arm), central spring strut, rebound/continuously variable 135mm wheel travel.

Front Brakes
2x 320mm discs 4 piston calipers

Rear Brakes
Single 320mm disc 2 piston caliper
ABS BMW Motorrad ABS (partial integral)

Front Tyre
120/70 ZR17

Rear Tyre
190/55 ZR17
Seat Height 810-830 (standard)
780-800 (option rider seat)
incl. pillion passenger seat)
750 (special accessory seat, single-section)
780 (special accessory seat, single-section)

Wet Weight
319 kg (without pannier)

Fuel Capacity
24 Litres

More about → BMW K1600GT

BMW K1600GTL

Ever since BMW Motorrad presented the concept study Concept 6 in autumn 2009, the new 6-cylinder in-line engine installed in it has caught the imagination of many motorcycle fans. For over seven decades now, 6-cylinder in-line engines have stood for fascinating engine technology in automobiles at BMW more than with any other brand. With the new K 1600 GT and K 1600 GTL, BMW motorcycles are now available for the first time with a 6-cylinder in-line power unit developed in-house. The two touring motorcycles have a supreme, impressive and equally distinctive appearance, creating a desire to travel at first sight.

Riding dynamics, long-distance suitability and comfort.

For decades, 6-cylinder in-line engines have exercised a special fascination. In addition to their perfect running smoothness they also offer supreme output and torque, giving the rider powerful emotional impressions.
In addition to safety, equipment and comfort, prestige and dynamic performance are the key criteria for a supreme touring bike. With the most compact in-line 6-cylinder engine in serial motorcycle production to date, the K 1600 GT and the K 1600 GTL penetrate a whole new dimension in terms of riding properties, long-distance suitability and comfort. They combine maximum agility and riding dynamics with a luxurious overall package. With an engine output of 118 kW (160 bhp) and a maximum torque of 175 Newton metres, their 6-cylinder engine provides superb propulsion in all conditions.



Lightest and most compact serial production 6-cylinder in-line engine in a motorcycle > 1000 cc.

Previously, the in-line arrangement of six cylinders resulted in either very long or very wide constructions, depending on the installation position, which led to drawbacks in terms of chassis geometry, weight distribution and centre of gravity. This where the K 1600 GT and K 1600 GTL break new ground.

Weighing 102.6 kilograms, the engine is by far the lightest serially produced 6-cylinder in-line engine for motorcycles in the class > 1000 cc. What is more, the engine is significantly narrower in construction width than all other 6-cylinder in-line motorcycles in serial production to date. This extremely compact construction and reduced width was achieved in particular by means of a cylinder bore of 72 millimetres in conjunction with a spacing of just 5 millimetres between the cylinder the cylinder sleeves.



Both the low engine weight and the consistent lightweight construction of the vehicle as a whole contribute to the low weight of the vehicle. At 319 kg (K 1600 GT without panniers) and 348 kg (K 1600 GTL with panniers and topcase) the new touring bikes are in the lower range of the segment.

Three modes to choose from and DTC (Dynamic Traction Control) for maximum safety when accelerating.

The rider of the K 1600 models has three different engine characteristics directly available at the press of a button at the right-hand end of the handlebars so as to be able to adapt to different uses such as touring on the road, riding on wet surfaces and sporty, dynamic motorcycling - the modes "Rain", "Road" and "Dynamic". Available as an option ex works, the traction control function DTC is combined individually with the different modes, fully harmonised with them so as to provide maximum riding safety.

The control of the central throttle valve with a diameter of 52 millimetres is effected via an e-gas, also known as a ride-by-wire system. The rider's wishes are registered by means of a sensor in the accelerator twist grip. The engine control then adjusts the position of the throttle valve accordingly.

Chassis with ideal mass concentration for dynamic riding properties.

The essential chassis elements of the BMW K 1600 GT and K 1600 GTL are the light alloy bridge-type frame, and the Duolever and Paralever for wheel control at front and rear. Because of the special requirements of a touring bike with a 6-cylinder engine, particular attention was paid to balancing the masses.

All in all, the interplay of chassis and engine position, together with the seating position of the rider, not only makes for a low overall centre of gravity with a very favourable concentration of masses, it also provides an ideally balanced wheel load distribution for excellent riding properties. The combination of ride stability, riding dynamics and lightness of handling in all riding and load conditions sets a new benchmark in the touring bike segment.



Electronic Suspension Adjustment ESA II for optimum adaptation to all uses and load states.

The new 6-cylinder touring bikes also benefit from the innovative Electronic Suspension Adjustment II (ESA II), which is offered as a special equipment feature ex works.

With this system, globally unique on the motorcycle market, the rider can conveniently press a button to electronically adapt not only the rebound damping properties of the front and rear spring strut but also the spring rest ("spring preload") of the rear spring strut as well as the latter's spring rate and therefore the "hardness" of the suspension. This makes for outstanding stability and impressive responsiveness in all load states.

The additional adaptation of the spring rate allows the damping settings "Sport, Normal, Comfort" to be spread widely in ESA II, giving them clearly perceptible characteristics during riding. So in "Sport" mode, the K 1600 GT and K 1600 GTL are even more dynamic and precise and in "Comfort" mode they are more comfortable - while still retaining excellent stability.

Adaptive headlight - a world first for increased safety at night.

With the new BMW Motorrad touring bikes, the first ever "Adaptive Headlight" option is available ex works in the motorcycle sector as a supplement to the standard xenon headlamp. In addition to standard pitch compensation, the light of the main headlamp is also balanced in relation to banking angle. This produces significantly improved illumination of the road when cornering and therefore an enormous increase in active riding safety.



Integrated operating concept with Multi-Controller, TFT colour screen and menu guidance.

The instrument panel of the K 1600 models comprises two classic circular instruments for the speedometer and tachometer and a 5.7-inch TFT colour display. The design of the information display is also completely new in the motorcycle field. Among other things, it enables the attractive presentation of text and graphics over several lines.

Another world first is the Multi-Controller as part of an integrated operating concept, first introduced in the BMW R 1200 RT at the end of 2009. In addition to audio system control, the K 1600 models also have a menu for operating the comfort functions and on-board computer.

Innovative design with outstanding wind and weather protection.

Particular attention was paid during development to the combination of innovative design, optimum wind and weather protection and the very highest level of functionality. A very good example of this is the electrically adjustable windshield with memory function.

The bike's aerodynamic qualities in terms of reduced air swirl - especially in the pillion passenger area - were developed in sophisticated wind tunnel tests. But the windshield not only protects the rider and pillion passenger: it automatically returns to the starting position when the ignition is switched off, acting as an anti-theft system for the optionally available navigation system.

BMW K 1600 GTL Features:

Year
2011

Engine
Liquid cooled, four stroke, transverse six cylinder, 4 valves per cylinder

Capacity
1649
Bore x Stroke 72 x 67.5 mm
Compression Ratio / Fuel 12.2:1 / premium unleaded (95 RON)

Induction


52mm Throttle valve diameter, BMS-X

Ignition / Starting
- / electric
Clutch Multiplate wet clutch, hydraulically activated

Max Power
118 KW 160.5 hp @ 7750 rpm

Max Torque


175 Nm @ 5250 rpm

Transmission / Drive
6 Speed / shaft
Gear Ratio 1st 2.23 2nd 1.641 3rd 1.319 4th 1.101 5th 0.926 6th 0.788
Frame

Main frame: chill-cast rear frame: aluminium, extruded sections

Front Suspension
Dual longitudinal control arm 115mm wheel travel.

Rear Suspension
Paralever (single-sided swing arm), central spring strut, rebound/continuously variable 135mm wheel travel.

Front Brakes
2x 320mm discs 4 piston calipers

Rear Brakes
Single 320mm disc 2 piston caliper
ABS BMW Motorrad ABS (partial integral)

Front Tyre
120/70 ZR17

Rear Tyre
190/55 ZR17
Seat Height 750 (standard)
780 (option seat, single-section)
780/800 (special accessory rider seat)
incl. pillion passenger seat)
810/830 (special accessory rider seat
incl. pillion passenger seat)

Wet Weight
348 kg (incl. pannier, topcase)

Fuel Capacity
26.5 Litres

More about → BMW K1600GTL

Aprilia MX 125

Aprilia, as attentive as always to fashions and the market, has decided to attack the small capacity Supermotard segment. The first offering in this sense was the MX 50, now followed by the bigger 125 cc version. The MX 125 Supermotard is a slick, agile, easy-to-handle, dynamic, fast and extremely appealing bike. It follows the latest trends in the Supermotard bikes, and is ideal for everyday use. The MX 125 is perfect for a wide range of uses, featuring high performance and is never caught off-guard in any situation. In fact, a motorbike such as the MX 125 perfectly combines the professional essentials of a “real” motorbike with the urban mobility needs of dynamic young riders, without compromising on the “hard” ride, cultivating the passion of the “motards” and the chance to learn the riding techniques of the champions in this speciality. All clearly with the safety of the high level technical components that define the 125 cc Aprilia motorbike.

Thanks to the power provided by the Aprilia single-cylinder, 2-stroke 125 cc racing-derived engine, the MX 125 is a machine that “eats the elbows”, putting bikes with a more sporting design and higher power in difficulty on mixed routes. The APRILIA MX 125 is therefore destined to become the king of the elbows, in the hills or in the mountains, thanks to its top performance and the handling and ridability of a sporting motorbike. Yet this won’t stop its young purchaser from using it to go to school or go out with friends, even with the girlfriend comfortably on the back, thanks to the approval for transporting passengers.

The reactivity of the ride and the feline sprint of the “Sport Production” derived two-stroke engine make the Aprilia Supermotard a perfect “take off” bike at the lights, with complete peace of mind, thanks to the suspension, brakes and tyres worthy of a larger capacity motorbike, making the bike extremely safe and comfortable in all the hazards that lurk on city roads. Paving stones, manhole covers, train tracks and holes can be faced on the MX 125 with double the safety of the normal scooter usually used around the town.

All, naturally, “sauced up” by a line designed based on the most modern style concepts of the Supermotard speciality, but with the ever present mark of the Aprilia personality, which has always brought to each of the segments it operates in an unmistakeable and often indelible sign of its style, with genial and innovative ideas.
Supermotard means safe fun and an authentic riding feeling. Aprilia interprets this philosophy, shared by the young, true motorcycling enthusiasts, to perfection. The MX 125 puts these concepts on the road.



DESIGN
Significant work has been done in terms of aesthetics by the APRILIA designers, who have especially created a brand-new front section for the MX 125, made up of the new generation mudguard, front fairing and transparent headlight; the ducts, the side panels, the plate holder and the smaller and better connected rear headlight, the aluminium handlebars and the modern digital dashboard.

RIDING POSITION
The MX 125 is a true supermotard, as demonstrated by its trim and the riding position; the saddle, the footrests (widened for better grip), the suspension, the brakes and the 17” spoke wheels make the MX 125 a winning supermotard.



BRAKES AND SUSPENSION
The braking system on the APRILIA Supermotard is extremely powerful for a 125 cc bike: a 320 mm front disk with floating two-pot calliper, and a 220 mm rear disk, also with floating calliper. The 40 mm upside-down telescopic fork features a wheel travel of 260 mm. The rear end features an adjustable single hydraulic shock absorber with piggy back (able to guarantee uniform operation); the wheel travel is 280 mm.

WHEELS
The main technical development in the creation of the Supermotard involves the wheels. In the case of the MX 125, the new components include aluminium spoke rims, 3.00” x 17 at the front and 4.25 x 17 at the rear. As a consequence, the tyres chosen are the large 110/70-17” and 150/60-17” road wheels, on the front and rear respectively.

ENGINE
The MX 125 engine is well known to 125 cc bike enthusiasts and experts, the superlative APRILIA liquid cooled engine, with balancing countershaft. The cylinder has a nickel and silicon carbide coating, which can deliver high power while ensuring long piston life. The exhaust is made from stainless steel, with built-in catalytic converter. An “absorption” type stainless steel silencer is used, for better noise abatement. All naturally in compliance with the upcoming Euro 2 emission standards. Lubrication is managed separately using a mixer.

DASHBOARD
No corners have been cut in terms of the dashboard, confirming the desire to create a versatile and practical bike for everyday use: the MX 125 digital dash features a new, innovative design, with all the functions required for the sporting use of the bike, and not only. Instant speed, maximum speed (recorded), average speed, odometer, trip time, lap time, clock, flat battery signal, oil in the mixer in reserve warning, service request signal. All this plus the 5 lights for the blinkers, neutral gear, low beam, high beam and the engine temperature/oil level.



The APRILIA MX 125 is dedicated to today’s sixteen year olds, for whom the scooter is no longer exciting, lovers of the motorbike and the sporting ride, but who find the exciting 125 sporting road bikes uncomfortable and a little impractical. A versatile, high performance Supermotard, yet sleek and light for everyday use. Quality, performance, advanced components and an appealing design are the keywords that describe this Aprilia Supermotard.

Aprilia MX 125 Features:

Year
2004

Engine

Liquid cooled, single cylinder, two stroke

Capacity
125
Bore x Stroke 54 x 54.5mm
Compression Ratio 12.5:1

Induction
Dell’Orto PHBH 28 RD carburettor

Ignition / Starting
Electronic with capacitive discharged /kick

Transmission / Drive
6 Speed / chain
Clutch Multiple disks in oil bath.
Frame Closed-cradle split at the level of the exhaust, made from high tensile tubular steel

Front Suspension
40 mm upside-down telescopic fork., 260mm wheel travel

Rear Suspension
Aluminium swinging fork with rectangular cross-section, fitted on frictionless bushes, single hydraulic shock absorber with piggy back.280mm wheel travel

Front Brakes
Single 320mm disc

Rear Brakes
Single 220mm disc

Front Tyre
110/70-17

Rear Tyre
150/60-17

Seat Height
678 mm


Fuel Capacity
11 Litres

More about → Aprilia MX 125

Aprilia Mana X Concept

Aprilia Mana X concept. Based on the 850 Mana, it has a 90°, 850cc V-Twin mated to a super-sized CVT transmission. It keeps the Mana's trellis frame, but with a new internally braced swingarm. Wheels are laced jobs, with the rear getting the 180/70-16 Dunlop D427 designed for Harley's FXDF Fat Bob! Braking is handled by wave-style rotors and the Brembo-like, radial-mount calipers found on the Mana, Shiver and Dorsoduro.

The rear shock and muffler are slung underneath, à la Buell. Styling is minimal and chic, with more than a passing nod to American street-trackers. Such spare, aggressive styling is to be expected from Aprilia's design studio in Noale; it's headed up by Miguel Galluzzi, who designed the first Ducati Monster in 1992. "All you need," as the big, friendly Argentine is quoted on Ducati's history website, "is a saddle, tank, engine, two wheels, and handlebars."



APRILIA MANA X APRILIA EXPLORES THE AUTOMATIC CONCEPT OF MOTION AND LANDS TO MANA X, SOPHISTICATED, YOUNG EVOLUTION AND TRASGRESSIVA OF REVOLUTIONARY NAKED 850.

In the 2007 Aprilia an innovative and thus revolutionary plan has launch with Mana 850 to change the same habits of the motorcyclists. Aprilia Mana is not a simple motorcycle, but much motion in a revolutionary Sportgear change, managed electronically, is in a position to offering an only pleasure of guide. Thanks to the three mappings for the management Autodrive of the transmission, or using the sequenziale change to seven gears, Mana offers always to the just brilliance in every situation always obtaining the maximum yield from bicylindrical 850 cc.

Aprilia Mana represents the maximum dell ? technological evolution applied to a motion and already available for all; a challenge that only the spirit of Aprilia, voted all innovation and technological evolution, is successful to face and to win. Now, with concept the Mana X, Aprilia the concept of " easy divertimento" widens that it is to the base of this revolutionary plan. Mana X extends and synthetizes, the only values of the Mana plan. Maintaining like bench marks bicylindrical diamond 850 cc to V of 90°, the revolutionary Sportgear change to management electronic and the chassis, Mana X represents not only one evolution rather but the declination than one of the multiple possibilities of expansion of the topic of the automatic motion.



Mana X is one concept that it more delineates the advanced synthesis of the Aprilia knowledge and leaves to catch a glimpse of the wide horizon of potentiality of development and evolution that the Mana plan door in itself.

Mana X confirmation name conquered from the naked version. Nothing raises of the clutch, all is managed electronically, leaving the single pilot the pleasure to guide. Concept Mana X estremizza i principles of versatilità, ease of handling and pleasure of guide, in a motion that, characterized from the revolutionary change sportgear, addresses absolutely young, dynamic a public of motorcyclists, naturally carried to reward originality and trasgressione.

Mana X is one motion that escapes every predefined category, not comparabile to others of for style, of for performance, placing itself as objective last the maximum pleasure of the motorcyclist. The layout completely new, the totally unknown posterior suspension, the tires is of generous section, Mana X emphasizes indispensable, the necessary one, and represents nearly the negation of the design commonly meant. In this concept to an essential spirit in which every stilistica and progettuale choice has as objective the semplicità of approach and of I use.

source:motorcyclespecs.co.za

More about → Aprilia Mana X Concept

Aprilia RS4 50 and Aprilia RS4 125 (2011)

Aprilia RS 50 and Aprilia RS4 125
Aprilia's small supersports bikes have been completely revised. Two models dedicated for young enthusiasts who want their first experience in the motorcycling world to be with a proper bike.

* Aprilia RS4 marked a milestone in the evolution of the 125 cc motorcycle.
* For the first time ever, the sportiest bike available for 16 year olds was a 4-stroke.
* For the youngest riders of all, the Aprilia RS 50 embodies all of Aprilia's technology in a genuine racing replica in just 50 cc.

Aprilia has always been the undisputed leader in the 50 and 125 cc supersports segment, pioneering innovative concepts and solutions and setting trends for its rivals to follow.

The Aprilia RS4 125 is the natural successor and most advanced evolution to date of the Aprilia RS 125, the bike that has dominated the 125 cc sports class for years, which set the benchmark for the one-eighth litre sports segment and which is still today the most highly sought after machine among riders competing in the Sport Production category.

Aprilia RS4 125 introduces the highly advanced, all-new 4 stroke powerplant to the sports segment, while adopting styling and technical solutions inherited from the RSV4, the superbike that led Aprilia to victory in the WSBK 2010 championship.

The most significant characteristics of the Aprilia RS 50 and Aprilia RS4 are:

* RS4 125 - single cylinder liquid cooled 125 cc 4-stroke with electronic injection, 4 valves and double overhead camshafts (DOHC)

characteristics in common:

* extremely stiff aluminium perimeter frame derived from racing experience
* 41 mm upside down fork
* front brake with 300 mm disc and radial four piston calliper
* Superbike inspired analogue/digital instrument panel
* fairings derived directly from RSV4 project for total aesthetic coherence with the SBK world champion



Design

The livery and eye-catching forms of the Aprilia RS 50 and RS4 125 echo the looks of the Factory version of the Aprilia RSV4 supersports bike. And the RS 50 and RS4 125 share more than just a family resemblance with the most hardcore street version the bike dominating the world SBK championship.

The design of the fairings and tank, the unique looks of the front end, with the headlights suspended over the gaping air intakes, and the spectacular tapered tail fairing are identical to their counterparts on 1000 cc supersports model that set new standards in terms of style and technical content for the superbike segment.

Extensive aerodynamic studies have minimised surface areas without compromising wind protection, and the fairings showcase the superlative mechanicals of the Aprilia RS 50 and Aprilia RS4 125 rather than conceal them. As a result, the frame and engine are not hidden away but proudly flaunted as fundamental elements of the design of Aprilia's new small supersports models. With the triple headlight, the Aprilia RS 50 and RS4 have a decidedly aggressive look that lends a unique character to the entire front end. The LED taillight merges stunningly into the ultra-compact tail fairing and offers excellent luminosity. Even from behind, the Aprilia RS4 125 is absolutely unmistakable.

The product of extensive wind tunnel testing and race experience, the fairing offers excellent wind protection together with superb aerodynamic efficiency. And as well as contributing to the extremely aggressive looks of the bike, the top fairing and tail fairing also maximise performance in terms of speed.



Engines

With the new RS 50 and RS4 125, Aprilia confirms its global leadership in the small capacity sports bike segment, creating models that exceed the expectations of even the most discerning rider.

The sophisticated chassis architecture of the Aprilia RS 50 and RS4 125 is complemented by state of the art engines.
The single cylinder 50 cc unit developed by Aprilia for the RS 50 is a water cooled two-stroke with reed valve induction. The lubrication uses a separate mixing system with a variable capacity volumetric pump. The six speed gearbox lets the rider make full use of the performance of this class beating engine.

The Aprilia RS4 is powered by an all new 125 cc water cooled 4 stroke single cylinder engine with four valves and electronic engine boasting a sophisticated double overhead camshaft (DOHC) valve timing system. This state of the art engine produces the maximum power output permitted for the class with a smooth, linear delivery and ecologically - as it meets even the strictest emissions regulations in effect.

With a six speed gearbox allowing the rider to make full use of the power available in all conditions, the Aprilia RS4 offers unbeatable performance in its class not just in terms of absolute power at high engine speeds, but also in terms of usable power band, minimised vibration and outstanding mechanical reliability.

The product of a cutting edge design, the new single cylinder 125 cc unit features dry sump lubrication making it extremely light and compact, allowing Aprilia's engineers to develop a class beating chassis layout.



Chasis

The RS 50 and RS4 125 stand head and shoulders above the competition for their superlative chassis layout: developed on the basis of Aprilia's outstanding successes in WSBK and GP 125, the frame consists of die cast aluminium spars with crossed reinforcement ribs. With its state of the art design, this extremely lightweight structure offers exceptional torsional stiffness.
The front suspension also boasts a class beating layout, with a sturdy 41 mm upside fork, red anodised stanchion clamps and a wheel travel of 110 mm, while at the rear is a monoshock linked directly to the asymmetric swingarm.

Both the Aprilia RS 50 and RS4 125 boast class beating brake systems: each bike uses a 300 mm steel disc at the front, gripped by a four piston radial calliper, and a 220 mm disc at the rear with a single piston calliper.
The 17” wheels are shod with 100/80 rubber up front and a 130/70 tyre at the rear.





Standart Equitment and Features

The multifunctional analogue/digital instrument panel with LCD display draws directly from Aprilia's experience in the Superbike class. The split 6-spoke design of the wheels further emphasises the purposeful character of Aprilia's latest small capacity sports bikes.

On Aprilia RS4, one additional detail underscores the level of sophistication of the bike: the exhaust, which is unmistakably inspired by competition machines, is completely integrated within the lower part of the fairing. A solution that is not just visually effective, but which also contributes significantly to the dynamics of the bike by helping to centralise masses.

The passenger saddle is yet another example of the extreme level of sophistication of these new bikes from Aprilia. Instead of fiddly screws, a practical quick release button allows the passenger seat to be exchanged with the tail fairing cover in an instant to transform the bike from two seat to single seat configuration

Aprilia RS4 125 Features:

Year
2011

Engine
Liquid cooled, four stroke single cylinder DOHC 4 valves. Euro 3 homologated

Capacity
124.8
Bore x Stroke 58 X 47 mm
Compression Ratio 12.5 ± 0.5:1

Induction
Electronic injection
ECU Magneti Marelli MIU G3 32 MM DIAM.

Ignition / Starting
Electronic with CDI capacity discharge / electdric
Clutch Multiple discs, in oil bath

Transmission / Drive
6 Speed / chain
Gear Ratio 1st 11/33 (0.33) 2nd 15/30 (0.50) 3rd 18/27 (0.67) 4th 20/24 (0.83) 5th 25/27 (0.92) 6th 23/22 (1.05)
Frame Aluminum perimeter frame

Front Suspension
41 mm upside down fork, 110mm wheel travel.

Rear Suspension
Asymmetric swingarm with monoshock, 130mm wheel travel.

Front Brakes
Single 300mm discs 4 piston caliper

Rear Brakes
Single 218mm disc 1 piston caliper

Front Tyre
110/80 –17

Rear Tyre
130/70 –17
Seat Height 820 mm

Fuel Capacity
14.5 Liters

More about → Aprilia RS4 50 and Aprilia RS4 125 (2011)

Aprilia FV2 1200

The Aprilia FV2 1200 is a concentration of technical innovation, a blend of technology, performance, and pure adrenaline. This amazing concept bike embodies the sum total of Aprilia's current technical know-how and points in the direction that technical development is likely to take at Noale in the next few years. 2007 was the twentieth anniversary of Aprilia's first GP win and a year in which another four world championships were won. This extraordinary achievement is a repeat of Aprilia's 2006 success story and takes the total of Aprilia's world championship titles to an amazing

What better technical and sporting heritage could there be behind the Aprilia FV2 1200 concept bike? The FV2 1200 embodies the latest Aprilia technology and reveals the direction likely to be taken by technical and stylistic development at Aprilia in the near future. The heart of the FV2 1200 is Aprilia's mighty, 1200 cc, 90° V twin, a power plant that confirms Aprilia's determination to develop high capacity, high technology engines using in-house skills and competence.

The minimalist bodywork of the FV2 1200 creates a stunning preponderance of volume towards the front of the bike. The result is a revolutionary, courageous and futuristic look that is destined to form the solid basis for the evolution of Aprilia motorcycle styling.




The engine also fulfils a structural role, and acts as the starting point for the backbone of the motorcycle, a carbon fibre, load bearing frame with integrated filter box. The seat is supported by an aluminium beam and by two carbon fibre struts that extend into the tail and around the rear light cluster. The parallelogram front suspension is based on the system already tried and tested on Aprilia's 250 cc GP racers.

These futuristic solutions have led to an amazing weight reduction (the FV2 1200 weighs under 160 kg) and an extremely compact size. The extraordinary agility that has always typified Aprilia motorcycles therefore finds its utmost expression in the FV2 1200.




The 1200 cc V twin engine is liquid cooled and boast a ride-by-wire control system. Traction control, a latest generation ABS system and electronic suspension management are also provided to let you ride at your performance peak while maintaining complete control over the bike.

The Aprilia FV2 1200's dashboard incorporates a multi-functional instrument cluster that can be interfaced not only with the bike's own CAN line but with a PC too, making it possible to download telemetric data for personal performance evaluations, reconfigure the information shown on the matrix display, load new mappings from the internet, display itineraries, and integrate GPRS and GSM modules for mobile phone connectivity.

More about → Aprilia FV2 1200

Aprilia ETV 1000 Caponord

The large-capacity trail-styled bike market is a lucrative one in Europe, and Aprilia's entry is certainly distinctive. The large twin-headlamp fairing follows the quirky design brief of the rest of the firm's bikes, while providing good weather protection. The familiar RSV Mille-based engine has been re-tuned to produce 73kW (98bhp) rather then the 97kW (130bhp) of the donor bike, providing a flatter, less peaky power delivery, more suited to relaxing progress. The unusual 'Double Wave' frame is very stiff, and long-travel suspension soaks up the worst bumps. Like most big-bore trailbikes, the Caponord is mainly aimed at touring use, so it has a large 25-litre (5.5 gal) fuel tank, spacious pillion accommodation and a large, comfy dual seat.

Aprilia ETV 1000 Caponord Features:

Year
2001-2002

Engine
Liquid cooled, four stroke, longitudinal 60°V twin, DOHC, 4 valves per cylinder

Capacity
997.6
Bore x Stroke 97 x 67.5mm
Compression Ratio 10.4:1

Induction
Fuel injection

Ignition / Starting
Digital electronic, two spark plugs per cylinder / electric

Max Power
98 hp 72 KW @ 8250 rpm

Max Torque
9.88 kg-m 97 Nm @ 6250 rpm

Transmission / Drive
6 Speed / chain
Frame Wave Twin Beam in box-type aluminium-magnesium alloy, highly-resistant removable steel rear subframe

Front Suspension
50mm Marzocchi hydraulic fork. 175mm wheel travel.

Rear Suspension
Aluminium alloy swing arm, progressive linkage. Sachs hydraulic shock absorber, rebound and preload adjustable. 185mm wheel travel.

Front Brakes
2 x 300mm discs 2 piston calipers

Rear Brakes
Single 270mm disc 2 piston caliper

Front Tyre
110/80 VR19

Rear Tyre
150/70 VR17
Seat Height 820 mm

Dry-Weight
215 kg

Fuel Capacity (res)
25 Litres. (5L)

Consumption average
16.2 km/lit

Standing ¼ Mile
12.1 sec / 179.2 km/h

Top Speed
219.2 km/h

More about → Aprilia ETV 1000 Caponord

Aprilia Blue Marlin

Unveiled at the 2001 Milan Show, the Blue Marlin is an advanced prototype model designed in collaboration with French company Boxer Design. It uses a back-to-basics approach to provide a rawer sportsbike experience. The 60° V-twin engine common to all of Aprilia's large-capacity bikes is housed in a steel-tube frame with aluminium rear plates. The line of the frame continues back up to the tail unit, in the style of race machines from the 1950s and 1960s. There are modern elements to the design too, with an aluminium tube swingarm, upside-down front forks and a purposeful twin headlamp nosecone. While the Blue Marlin looks simple, its components are very high quality, including Öhlins suspension and Brembo brakes.

More about → Aprilia Blue Marlin

Kawasaki Z1000 SX (2011)

It could be baptized “the moment of dark green . ” In the days before the INTERMOT 2010 seems to confirm that the news will not be limited to 2011 colors and that the well known Z750R will not be the only player in the spotlight of Cologne.



Emerge from the network – and more precisely by SoyoMotero.net – some pictures and the first technical details about the new Z1000SX, Unpublished version of the faired maxi -naked Akashi which now caters to an audience too sporty, but that does not disdain more protectiveness and use your bike for travel in the medium -long range .



The new aesthetics is clear: the windshield of a good size is also adjustable, raised handlebars , while the hull with fin is very aggressive . Less sophisticated design of the rear, where the handles and the optics look very much like that of twin ER -6.

All new instrumentation, which combines an analog part (the revolution ) to a digital , which offers all the information on the onboard computer and its functions . Under the tank ( 19 liters ) houses the 4-cylinder DOHC 16-valve 1043 CC 138 Hp who vents his voice through the exhaust system 4-2-2 amended, with a smaller volume of 3 liters compared to that of the Z1000 , and above 3.5 kg less weight .

More about → Kawasaki Z1000 SX (2011)

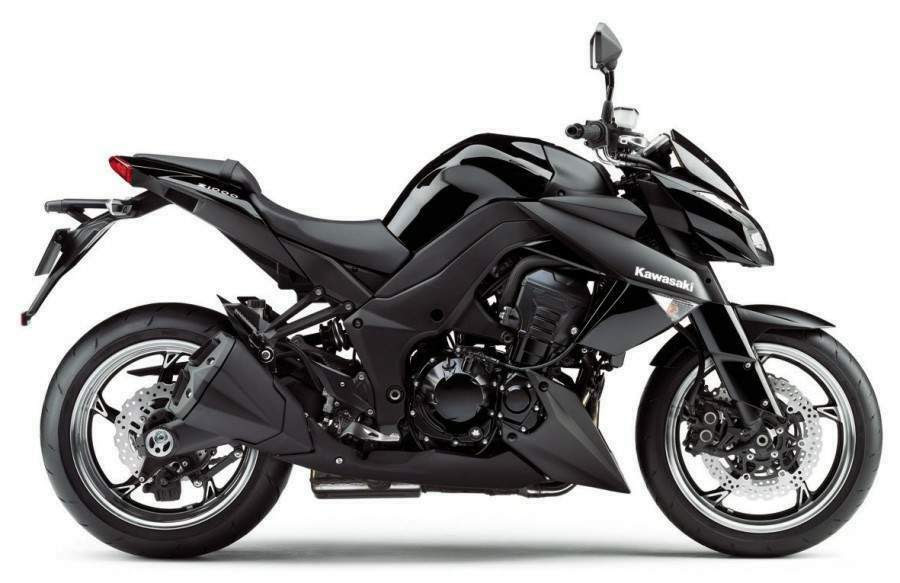

Kawasaki Z1000 (2011)

The Z1000 thrills before you even jump aboard, with some of motorcycling’s most rakishly stunning lines and body shapes. The aesthetic showcase begins with a low-mount front cowl that slopes back radically, highlighting the Z’s prow and, behind it, an adjustable instrument cluster featuring a multifunction LCD display covered by a trick-looking orange lens. The headlight represents Kawasaki’s first-ever use of a line-beam unit, the guts of which are integrated nicely into that angled cowl. Moving rearward, you come to a shapely fuel tank that’s flared on the sides to let you grab it with your knees and that’s trim at the back for a snug fit. The seat is low and narrow at the front to make ground contact easy, and flows beautifully rearward to end in a futuristically retro LED taillight behind a red lens. It’s a thoroughly athletic shape, one sure to garner attention wherever it’s ridden.

Totally redesigned just last year, the Z features a wide range of new-think moto technology, including an aluminum frame similar to the ZX™-10R’s that curves over the engine, cradling it from above. The design allows a narrow mid-section, which fosters a high degree of rider comfort and feedback in addition to keeping weight low and chassis rigidity high. The engine bolts solidly to the frame in three places, stressed-member-style, and there’s also a rubber mount at the upper rear crankcase area for added vibration damping and torsional rigidity. The main frame and swingarm pivot elements are cast as a single unit, with welds eliminated wherever possible for a more aesthetically pleasing look. And the subframe is a lightweight aluminum die-casting, which is light, smooth and beautiful.



Suspension at both ends is thoroughly modern and wickedly functional: a beefy, fully adjustable 41mm inverted fork up front and a spring preload and rebound damping adjustable horizontal back-link shock is mounted above the swingarm to shield it from exhaust heat and foster an added degree of mass centralization. Wheel control is simply superb, and the substantial feedback sent to the rider makes it easy to know exactly what’s going on at the bike’s contact patches.



The heart of every naked bike is its engine, so Kawasaki engineers paid special attention here for maximum, arm-straightening impact: Dual cams. Sixteen valves. 1,043cc. Liquid cooling. High compression. A long stroke – 56mm – for instantaneous thrust. Six speeds. And digital fuel injection. It’s all there.

Kawasaki Z 1000 Features:

Year
2011

Engine
Liquid cooled, four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity
1043
Bore x Stroke 77.0 x 56.0mm
Compression Ratio 11.8:1

Induction
DFI® with four 38mm Keihin throttle bodies, oval sub-throttles

Ignition / Starting
TCBI with digital advance / electric

Transmission / Drive
6 Speed / chain
Frame Type: Aluminum Backbone
Rake/Trail 24.5 degrees / 4.1 in.

Front Suspension
41mm inverted cartridge fork with stepless compression and rebound damping, adjustable spring preload / 4.7 in wheel travel

Rear Suspension
Horizontal monoshock with stepless rebound damping, adjustable spring preload / 5.4 in wheel travel.

Front Brakes
2x 300mm discs 2 piston caliper

Rear Brakes
Single 250mm disc 1 piston caliper

Front Tyre
120/70 -R17

Rear Tyre
190/50 ZR17
Seat Height 815.3 mm / 32.1 in.

Fuel Capacity
15.5 Litres / 4.1 lb
Consumption average 17.1 km/lit

Standing ¼ Mile
11.1 sec

Top Speed
239.7 km/h

More about → Kawasaki Z1000 (2011)

Kawasaki Z1000 (2009)

Primed to once again set the performance naked bike class ablaze, the Kawasaki Z1000 for 2008 received seriously bulked up performance and styling . Whilst it's price has been seriously reduced for 2009 with the ABS model now being reduced in price to the old Non ABS price. For 2009 ABS will be the only model available. The aggressive aesthetics of this machine directly mirrors its ferocious performance. With the engine and chassis characteristics of the Kawasaki Z1000 refocused for serious street riding, the new model more than takes up where its predecessor left off – it redefines what pure naked performance really is all about.



Power
The engine of the Kawasaki Z1000 has been tuned to satisfy the most demanding big-bore power riders, with torque boosted, particularly in the low- to mid rev-range to provide loads of muscle when and where it’s most needed. Even from cruising speeds a twist of the throttle really delivers the goods, and the engine will keep on pulling hard right through the rev range.



Control
For 2008 the new Kawasaki Z1000 received a new engine sub-frame and re-engineered chassis rigidity which provides truly outstanding feedback, enabling the street rider to instantly read and respond to the bike’s behaviour in all speed ranges. Further enhancing rider-machine synergy are improved mass centralisation and revised ergonomics, with handlebars positioned closer to the rider and a slimmer seat resulting in a compact riding position which allows the rider to take full advantage of the Kawasaki Z1000 ’s greater stability and sharp, nimble handling qualities.



Style
With pure aggression emanating from the very core of the Kawasaki Z1000, it is not at all surprising that its performance levels are in turn reflected in this bike’s fierce styling and sheer physical presence. The crouching, muscular appearance of the new Z1000 is direct testimony to the bike’s potency. It’s stance is as that of the body of a conditioned athlete poised to explode from the blocks.

Kawasaki Z1000 2009 Features:

Engine type Liquid-cooled, 4-stroke In-Line 4
Displacement 953 cm³
Bore x stroke 77.2 x 50.9 mm
Compression ratio 11.2:1
Valve/Induction system DOHC, 16 valves
Maximum power 92 kW {125 PS} / 10,000 rpm
Maximum torque 98.7 N·m {10.1 kgf·m} / 8,200 rpm
Fuel system Fuel injection: ø36 mm x 4 (Keihin) with oval sub-throttles
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Final Drive Sealed chain
Primary reduction ratio 1.714 (84/49)
Gear ratios: 1st 2.571 (36/14)
Gear ratios: 2nd 1.882 (32/17)
Gear ratios: 3rd 1.556 (28/18)
Gear ratios: 4th 1.333 (28/21)
Gear ratios: 5th 1.200 (24/20)
Gear ratios: 6th 1.095 (23/21)
Final reduction ratio 2.667 (40/15)
Clutch Wet multi-disc, manual
Frame type Tubular backbone (with engine sub-frame), high-tensile steel
Rake/Trail 24.5° / 103 mm
Suspension, front 41 mm inverted fork with stepless rebound damping and spring preload adjustability
Suspension, rear Bottom-Link Uni-Trak with gas-charged shock,
stepless rebound damping and spring preload adjustability
Wheel travel, front 120 mm
Wheel travel, rear 150 mm
Tyre, front 120/70ZR17M/C (58W)
Tyre, rear 190/50ZR17M/C (73W)
Brakes, front Dual semi-floating 300 mm petal discs
Brakes, rear Single 250 mm petal disc
Steering angle, left / right 31° / 31°
Dimensions (L x W x H) 2,090 mm x 780 mm x 1,065 mm
Wheelbase 1,445 mm
Ground Clearance 160 mm
Seat height 820 mm
Fuel capacity 18.5 litres

More about → Kawasaki Z1000 (2009)
